Apache Helicopter

Boeing AH-64 Apache Helicopter Is World's Most Advanced Attack Helicopter.

The Boeing AH-64 Apache helicopter is a twin-turboshaft attack helicopter gunship designed and manufactured by Boeing Defense, Space & Security. The Apache is one of the most advanced attack helicopters in the world and has been in service since 1984. It is designed to operate in day or night, all-weather conditions, and is equipped with advanced avionics and weapons systems.

The Apache is a highly manoeuvrable helicopter with a maximum speed of 227 mph (365 km/h) and a range of 300 miles (480 km). It can carry a variety of weapons systems including Hellfire anti-tank missiles, Stinger anti-aircraft missiles, and a 30 mm M230 chain gun with 1,200 rounds of ammunition. The Apache can also carry Hydra 70 rockets, which can be fired in a variety of modes including laser-guided and unguided.

IAF Apache AH64 Helicopter , Apache Helicopter , Boeing AH-64 Apache

The Boeing Apache AH-64 is a highly advanced attack helicopter designed for combat operations. It is widely regarded as one of the most lethal helicopters in the world, with an impressive combat record spanning several decades.

The Apache AH-64 was first introduced in the 1980s and has since undergone several upgrades and modifications to enhance its capabilities. It is equipped with advanced avionics and weapons systems, making it a formidable opponent in the battlefield. The Apache is also equipped with advanced electronic warfare systems, including radar and laser warning receivers, chaff and flare dispensers, and infrared jammers.

One of the key features of the Apache is its ability to operate in all weather conditions, day or night. It has a target acquisition and tracking system that can detect and engage multiple targets simultaneously, making it an effective weapon against both ground and air targets.

The helicopter is equipped with a 30mm M230 chain gun, which can fire up to 625 rounds per minute. It also has the capability to carry up to 16 Hellfire missiles, which can be launched from a safe distance, providing maximum accuracy and reducing the risk to the crew.

In addition to its weapons systems, the Apache AH-64 is equipped with advanced communications and navigation equipment, enabling it to operate in complex, highly contested environments. Its Armor plating and advanced defensive systems provide enhanced protection for the crew, making it more survivable in combat situations.

The Apache AH-64 has been used in several major conflicts, including Operation Desert Storm, the Iraq War, and the War in Afghanistan. Its combat record is exemplary, having successfully engaged enemy targets and provided close air support to ground troops in a variety of environments.

Boeing Apache AH-64 Helicopter Technical Features

The Apache helicopter is a highly advanced attack helicopter that features a range of technical features designed to enhance its performance and survivability in combat.

The Apache helicopter is a highly advanced weapon system that combines advanced avionics, powerful armament, and advanced defensive systems to provide unparalleled combat capabilities.

Here are some of the key technical features of the Apache:

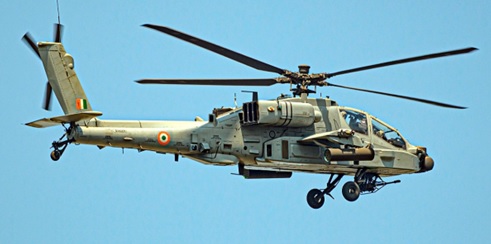

Apache AH64 Technical Features , Boeing Apache Gunship

Turboshaft Engines

The Apache is powered by two T700-GE-701C turboshaft engines, each of which produces 1,690 horsepower. These engines provide the Apache with a top speed of 227 mph (365 km/h) and a range of 300 miles (480 km).

Armaments

The Apache is armed with a 30mm M230 chain gun mounted under its nose, which is capable of firing up to 625 rounds per minute. It can also carry up to 16 Hellfire missiles, as well as Hydra 70mm rockets and Stinger air-to-air missiles.

Avionics

The Apache features advanced avionics and sensor systems that enable it to operate in all weather conditions and at night. Its target acquisition and designation system (TADS) and pilot night vision system (PNVS) enable pilots to detect and engage targets from long distances.

Fire Control Radar

The Apache is equipped with a fire control radar system that enables it to detect and track multiple targets simultaneously. The Longbow variant of the Apache features the AN/APG-78 Longbow fire control radar, which has a range of over 5 miles (8 km) and can operate in adverse weather conditions.

Apache Armor

The Apache features Armor plating that protects the crew and critical systems from small arms fire and shrapnel. The cockpit is also fitted with bulletproof glass and a windshield that can withstand bird strikes.

Self-Defense Systems

The Apache features a range of self-defence systems, including radar warning receivers, missile warning systems, and chaff and flare dispensers. These systems are designed to detect and defeat incoming threats, such as missiles and anti-aircraft guns.

Communication And Navigation Systems

The Apache is equipped with advanced communication and navigation systems, including satellite communications, secure voice and data links, and GPS navigation. These systems enable the Apache to operate effectively in complex battlefield environments.

Boeing AH-64 Apache Helicopter

Apache Helicopter Gunship Weapons And Armaments

The Boeing Apache AH-64 attack helicopter is a highly advanced and lethal weapon system, capable of operating in a variety of environments and engaging multiple targets simultaneously. Its advanced avionics, weapons systems, and defensive capabilities make it a formidable opponent in the battlefield, and it is likely to remain a key weapon system for many years to come.

The Apache helicopter is equipped with a wide range of weapons, including:

Apache Weapons And Armaments

AGM-114 Hellfire Missiles

The Lockheed Martin’s AGM-114 Hellfire missile is an air-to-ground missile that is primarily used by the United States armed forces and other countries that are allies with the U.S. It is a precision-guided missile that is designed to destroy enemy targets with minimal collateral damage.

The Hellfire missile has a range of up to 8 kilometers (5 miles) and is typically launched from a helicopter or unmanned aerial vehicle (UAV). It is equipped with a high-explosive anti-tank (HEAT) warhead or a blast fragmentation warhead, depending on the mission requirements.

The Hellfire missile has been used in a variety of conflicts, including the Gulf War, the Iraq War, and the War in Afghanistan. It has been used to target enemy tanks, armored vehicles, buildings, and personnel.

The AGM-114 Hellfire missile is a highly effective weapon system that provides U.S. forces and its allies with a precise and lethal means of destroying enemy targets on the battlefield.

Lockheed Martins AGM-114 Hellfire Missile

Hydra 70 Rockets

The Hydra 70 rocket is a family of unguided, air-to-ground rockets that is primarily used by the United States military and its allies. It is designed to provide a low-cost, lightweight, and versatile weapon system for a variety of mission requirements.

The Hydra 70 rocket comes in several variants, including high-explosive, incendiary, and smoke variants. It has a diameter of 70mm and a range of up to 8 kilometers (5 miles), depending on the launch platform and altitude.

The Hydra 70 rocket is commonly launched from rotary-wing aircraft such as the AH-64 Apache attack helicopter and the UH-60 Black Hawk utility helicopter. It can also be launched from ground-based platforms such as the M270 Multiple Launch Rocket System (MLRS).

M230 30mm Chain Gun

The M230 30mm Chain Gun is an automatic cannon that is primarily used by the United States Army. It is mounted on the AH-64 Apache attack helicopter and is designed to provide close air support for ground troops, as well as engage armored vehicles and other enemy targets.

The M230 Chain Gun fires 30mm rounds at a rate of up to 625 rounds per minute. It has a range of up to 4,000 meters (2.5 miles) and is capable of firing a variety of ammunition types, including armor-piercing and high-explosive rounds.

The M230 Chain Gun is mounted on a chin turret on the AH-64 Apache and is controlled by the helicopter’s pilot or co-pilot. The gun is also equipped with a targeting system that provides a laser range finder and infrared sensor, which allows for accurate targeting of enemy vehicles and personnel.

AIM-92 Stinger Missiles

The AIM-92 Stinger missile is an air-to-air missile that is primarily used by the United States military and its allies. It is designed to provide short-range air defense against enemy aircraft and helicopters.

The AIM-92 Stinger missile is a fire-and-forget missile that is equipped with an infrared seeker and a high-explosive fragmentation warhead. It has a range of up to 6.8 kilometers (4.2 miles) and is typically launched from a helicopter or other rotary-wing aircraft.

Raytheon AIM-92 Stinger Air To Air Missile

The AIM-92 Stinger missile is capable of engaging both low-altitude and high-altitude targets, and it is highly effective against slow-moving or hovering targets such as helicopters. It is also equipped with countermeasures that allow it to resist enemy electronic jamming.

APKWS Laser-Guided Rocket

The Advanced Precision Kill Weapon System (APKWS) is a laser-guided rocket that is primarily used by the United States military and its allies. It is designed to provide a low-cost, highly accurate alternative to more expensive guided missiles for engaging enemy targets.

The APKWS rocket is a modification of the 2.75-inch (70mm) Hydra 70 unguided rocket. It is equipped with a guidance kit that includes a laser seeker, guidance and control electronics, and a small control surface that attaches to the rocket’s fins.

To use the APKWS rocket, a laser designator is used to “paint” the target with a laser beam, which is detected by the rocket’s seeker. The guidance system then steers the rocket towards the laser spot, allowing for precise targeting of enemy vehicles, buildings, and personnel.

Boeing AH-64 Apache Helicopter

Apache Helicopter Cockpit

The Apache helicopter cockpit is a complex and sophisticated system that includes advanced avionics, weapon systems, and communication equipment. The cockpit is designed to provide the pilots with a comprehensive situational awareness and enable them to operate the helicopter in a wide range of mission scenarios.

The cockpit of the Apache helicopter is a tandem design, which means that the two pilots sit one behind the other. The pilot in the front seat is the pilot-in-command, while the pilot in the back seat serves as the co-pilot and gunner.

Boeing Apache AH64 Cockpit

The cockpit is equipped with a wide range of displays and controls, including a large multi-function display (MFD) that provides the pilots with real-time information about the helicopter’s status, mission parameters, and weapon systems. The cockpit also features a head-up display (HUD) that projects critical information onto the pilot’s field of view, allowing them to keep their eyes on the target while monitoring their instruments.

The Apache cockpit is also equipped with a digital map display system that provides the pilots with real-time situational awareness of the battlefield. The system is integrated with the helicopter’s sensors, allowing the pilots to track and identify targets in real-time.

Apache AH64 Cockpit

In addition to the cockpit displays, the Apache is equipped with a range of controls and switches that allow the pilots to operate the helicopter’s advanced weapon systems, including the 30mm M230 chain gun, rockets, and Hellfire missiles. The cockpit also includes a communication system that enables the pilots to communicate with ground troops, other aircraft, and command centres.

Apache AH-64 Combat History

The Apache helicopter has seen extensive combat use in various conflicts around the world since its introduction in the 1980s. The Apache helicopter has a long and successful combat history, and has proven to be a highly effective weapon system in a variety of combat environments.

Here are some of the key combat operations that Apache helicopters have been involved in:

Operation Desert Storm - Gulf War 1991

During Operation Desert Storm in 1991, Apache helicopters were deployed in large numbers to provide close air support for ground troops and to attack enemy armored vehicles and tanks. They were used extensively in the Battle of 73 Easting, where they played a key role in the destruction of Iraqi tanks and armored vehicles.

Apache In Action , Desert Storm , Gulf War

Kosovo War 1999

Apache helicopters were used by the United States and NATO forces during the Kosovo War in 1999 to attack Serbian military targets and provide close air support for ground troops. They also flew reconnaissance missions and provided airborne command and control capabilities.

War in Afghanistan (Operation Enduring Freedom) 2001

Apache helicopters were deployed to Afghanistan in 2001 as part of the US-led coalition forces’ efforts to oust the Taliban regime and dismantle Al Qaeda. They were used to support ground troops, conduct reconnaissance missions, and attack enemy positions. The Apache has remained a key asset in the ongoing conflict in Afghanistan.

AGM-114 Hellfire Missile , Anti Tank Missile

Iraq War ( Operation Iraqi Freedom ) 2003

Apache helicopters were deployed to Afghanistan in 2001 as part of the US-led coalition forces’ efforts to oust the Taliban regime and dismantle Al Qaeda. They were used to support ground troops, conduct reconnaissance missions, and attack enemy positions. The Apache has remained a key asset in the ongoing conflict in Afghanistan.

Libyan Civil War 2011

Apache helicopters were used by NATO forces in 2011 during the Libyan Civil War to attack targets in support of the anti-government rebels. They were used to attack Libyan military assets, including tanks, artillery, and ammunition depots.

Apache AH-64 Development History

The Apache helicopter is a twin-engine, four-bladed attack helicopter developed by McDonnell Douglas (now part of Boeing) for the United States Army. The development of the Apache helicopter began in the late 1960s, and the first prototype AH-64A Apache flew in September 1975.

Here are some key milestones in the development history of the Apache helicopter:

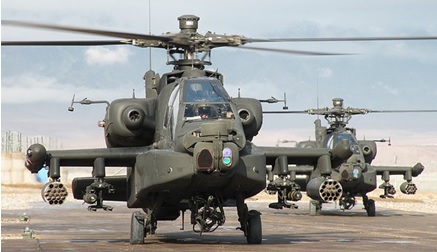

Apache development history
  • In 1972, the United States Army issued a requirement for a new attack helicopter to replace the aging AH-1 Cobra. The Army’s requirements included the ability to operate at night and in adverse weather, as well as increased survivability and lethality.
  • McDonnell Douglas was awarded a contract to develop the new attack helicopter in 1976, and the first production AH-64A Apache was delivered to the Army in 1984.
  • The AH-64A Apache was equipped with advanced avionics and weapons systems, including the M230 30mm cannon, Hellfire missiles, and Hydra rockets. It was also designed to be highly maneuverable, with a top speed of 227 mph (365 km/h) and a range of 300 miles (480 km).
  • The AH-64A Apache saw its first combat action during the Gulf War in 1991, where it proved to be a highly effective weapon system against Iraqi tanks, armored vehicles, and ground troops.
  • In the late 1990s, McDonnell Douglas developed an upgraded version of the Apache helicopter, known as the AH-64D Apache Longbow. The Longbow was equipped with a new fire control radar system, which enabled it to detect and engage targets at longer ranges and in adverse weather conditions.
  • The AH-64D Apache Longbow entered service with the United States Army in 1998 and has since been upgraded with additional improvements, including enhanced communications and navigation systems, as well as new weapons systems like the Joint Air-to-Ground Missile.
  • In 2010, the United States Army announced plans to upgrade its fleet of Apache helicopters with the AH-64E Apache Guardian, which features improved engines, sensors, and avionics, as well as the ability to control unmanned aerial vehicles (UAVs).
  • The AH-64E Apache Guardian has been used in a variety of missions, including counterinsurgency operations in Iraq and Afghanistan, and has proven to be a highly effective weapon system in both urban and rural environments.
